Features

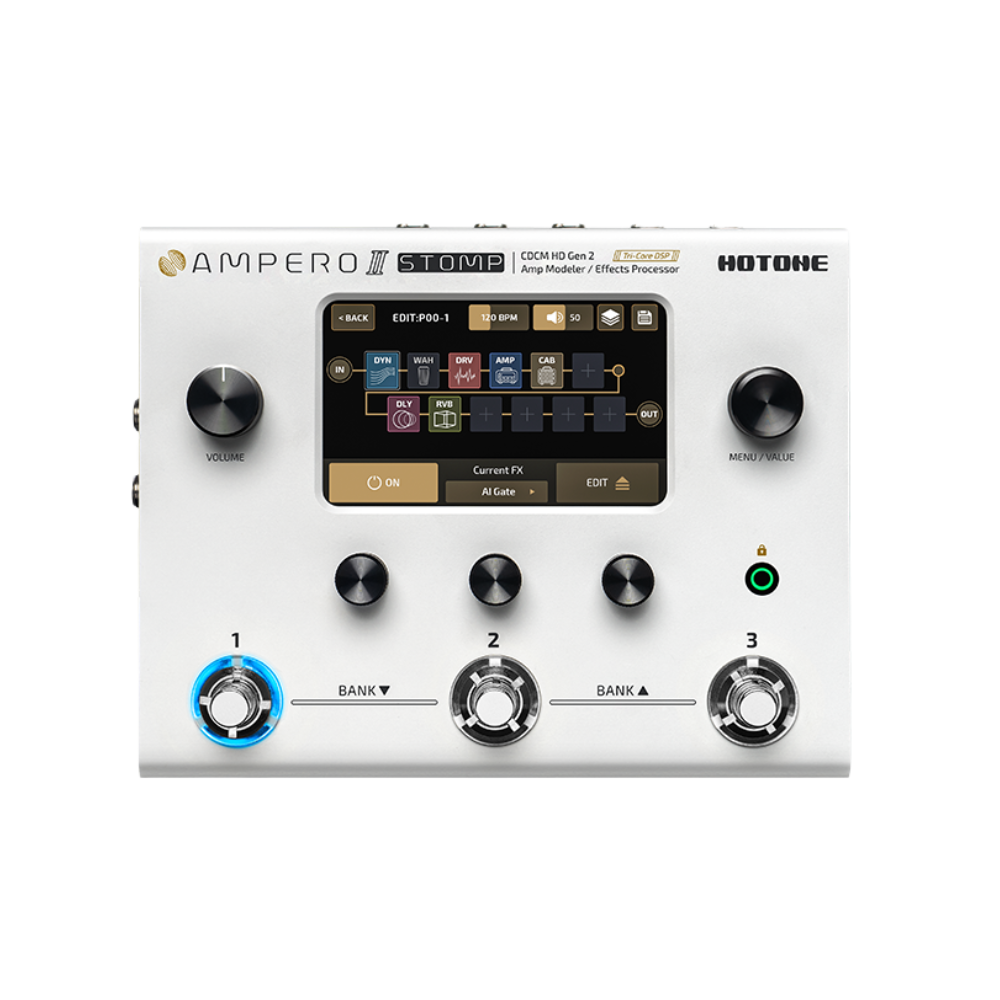

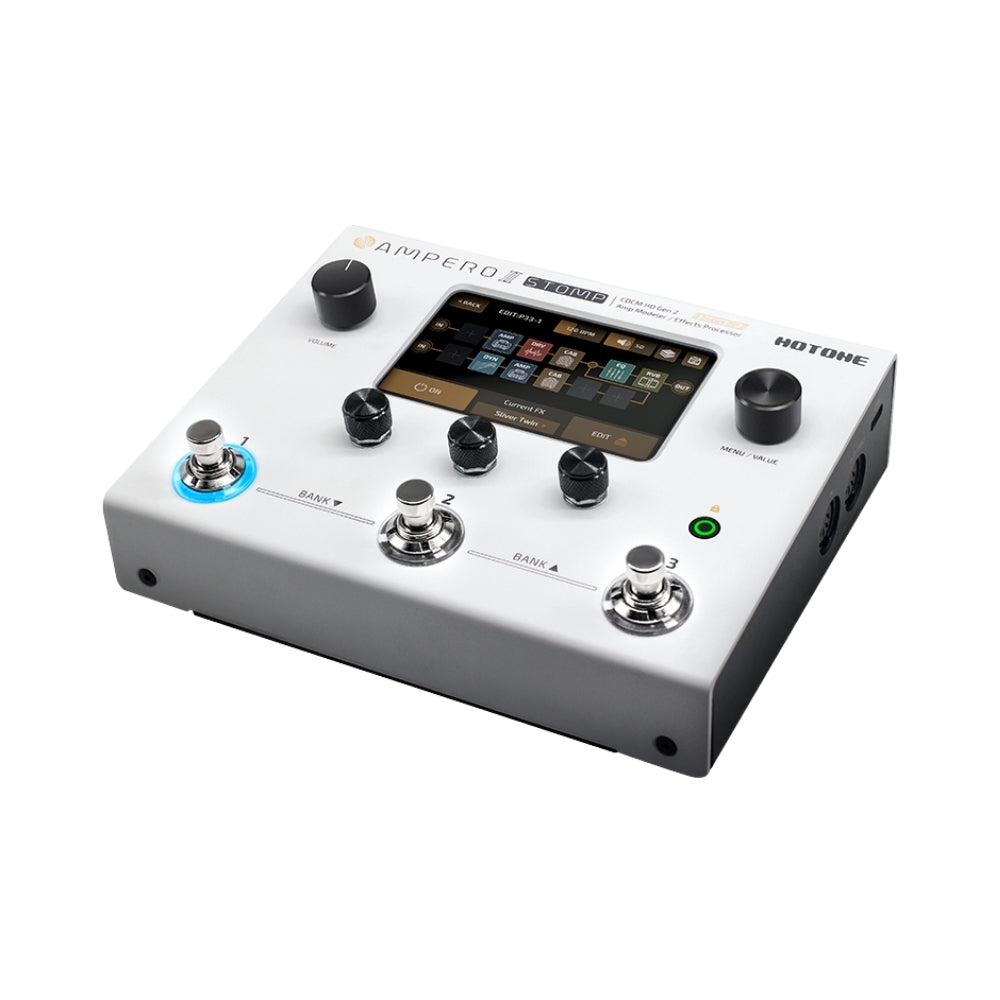

Ultra-compact amp modeler and effects processor
- Powerful dual-core DSP platform ensures amplifier-like sound quality
- The CDCM and FIRE modeling system ensures high-end tonal expressiveness and a realistic playing experience.
- 24-bit signal processing, 112 dB S/N ratio

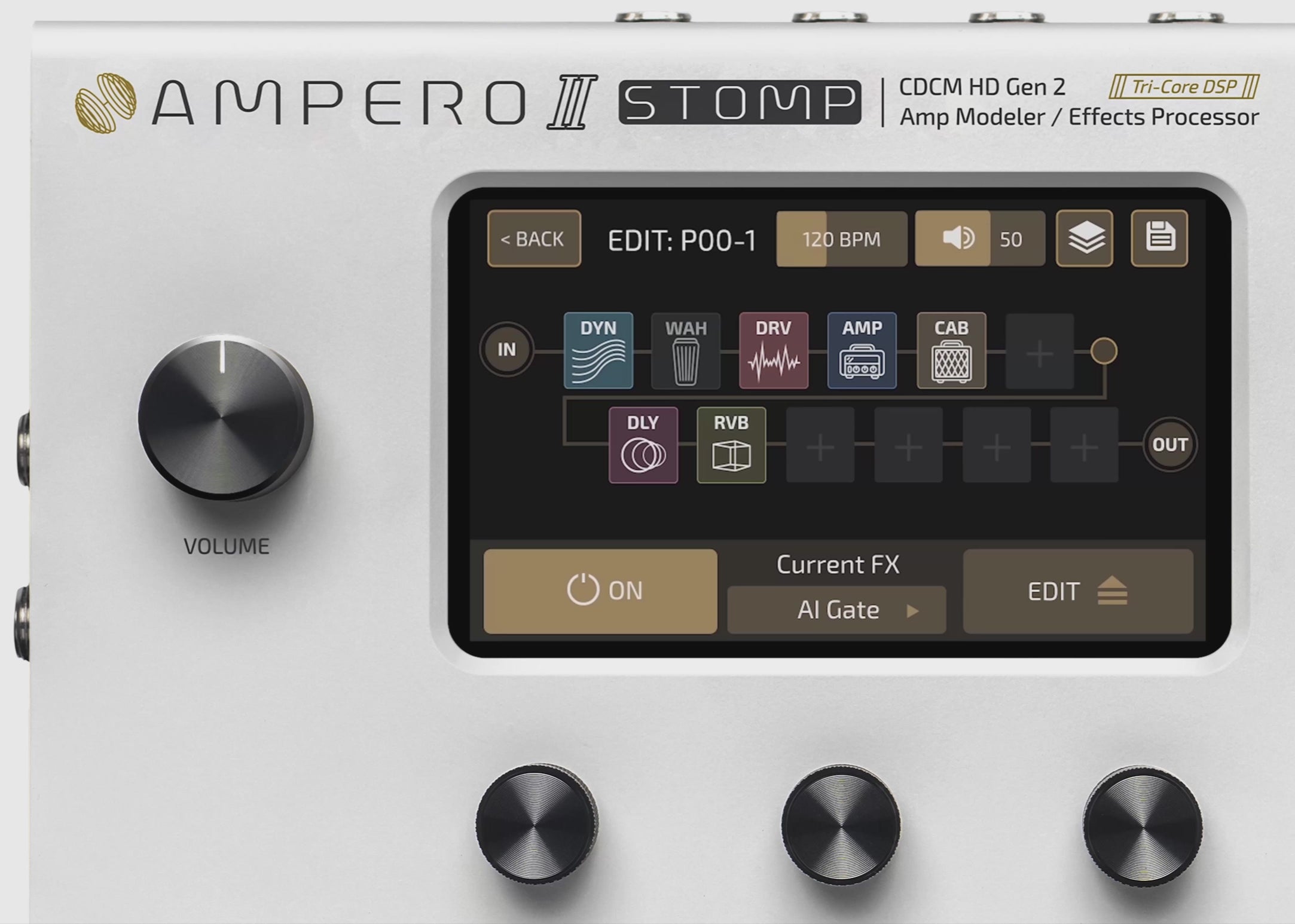

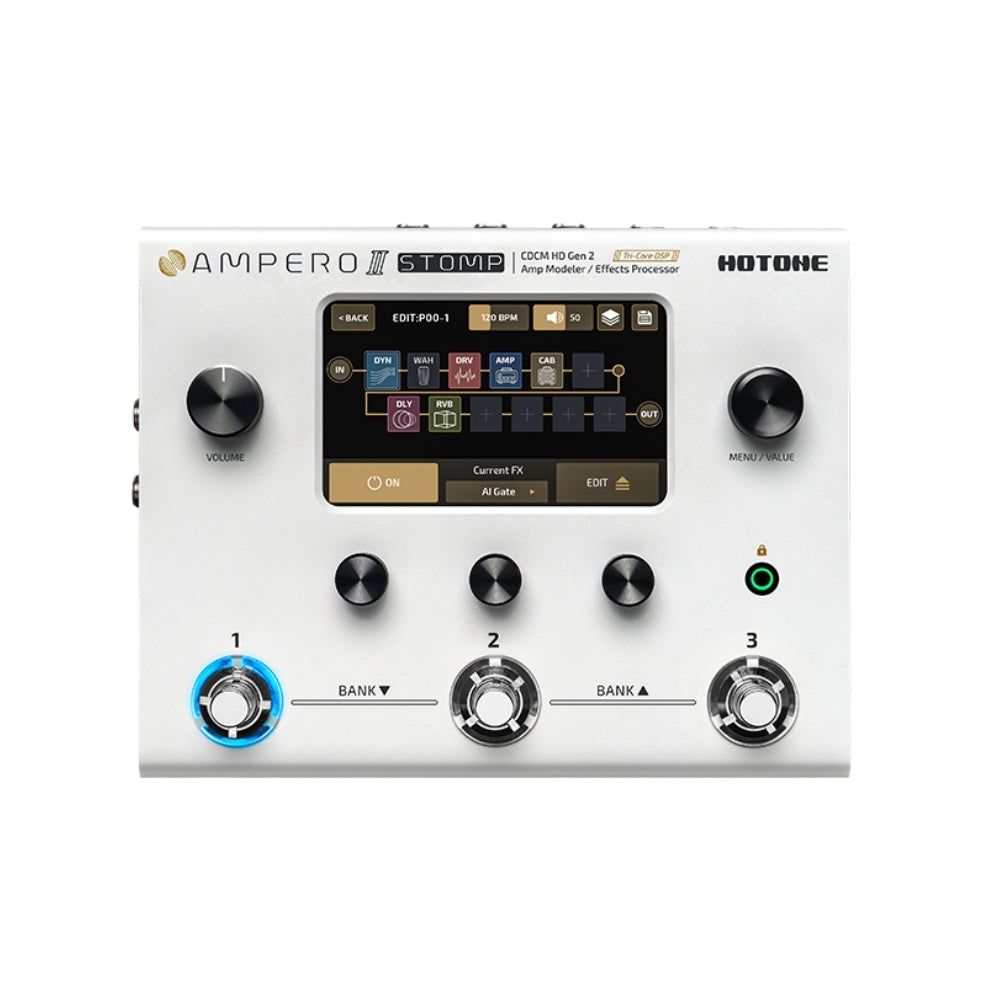

- Iconic touchscreen and simple user interface for intuitive control
- Editable effects chain
Connectivity and management
USB-C port for
- Firmware Update
- Loading/editing/managing effects/IR via free software for Mac/PC
- Use as a USB audio interface.
Power of effects
Up to 9 simultaneous effects modules. Effects selected from the impressive Ampero effects library:
- 100+ legendary amp, cab, and pedal models based on CDCM HD and FIRE
- Next-generation microphone position and type simulations
- Selection of original Hotone effects (drive/dynamic/filter/mod/delay/reverb models, etc.)
- User-customized IR loader with support for third-party IRs
Additional Features
- Input jack specially designed for electric and acoustic instruments
- 198 built-in presets
- Dedicated acoustic effects and patches
- Built-in drum machine with 100 patterns
- Built-in looper (up to 100 seconds of recording)
- Authentic stereo output
- External controller jack for connecting external pedals/pedalboards
- Customizable user interface (display modes, theme colors, language)
- Lightweight, plug-and-play aluminum housing
- 9V DC power supply
Specifications
Digital Audio Signal Processing : 24-bit depth, 44.1 kHz sampling rate
Frequency Response : 20 Hz – 20 kHz ± 1 dB
Dynamic Range : Max. 127 dB (digital to analog)
Effects : 460 (including global EQ)
Effects Modules : Up to 16 modules
Effect Slots : 12 simultaneous effects
Programs (Patches) : 300
Loop Length : 60 seconds in stereo

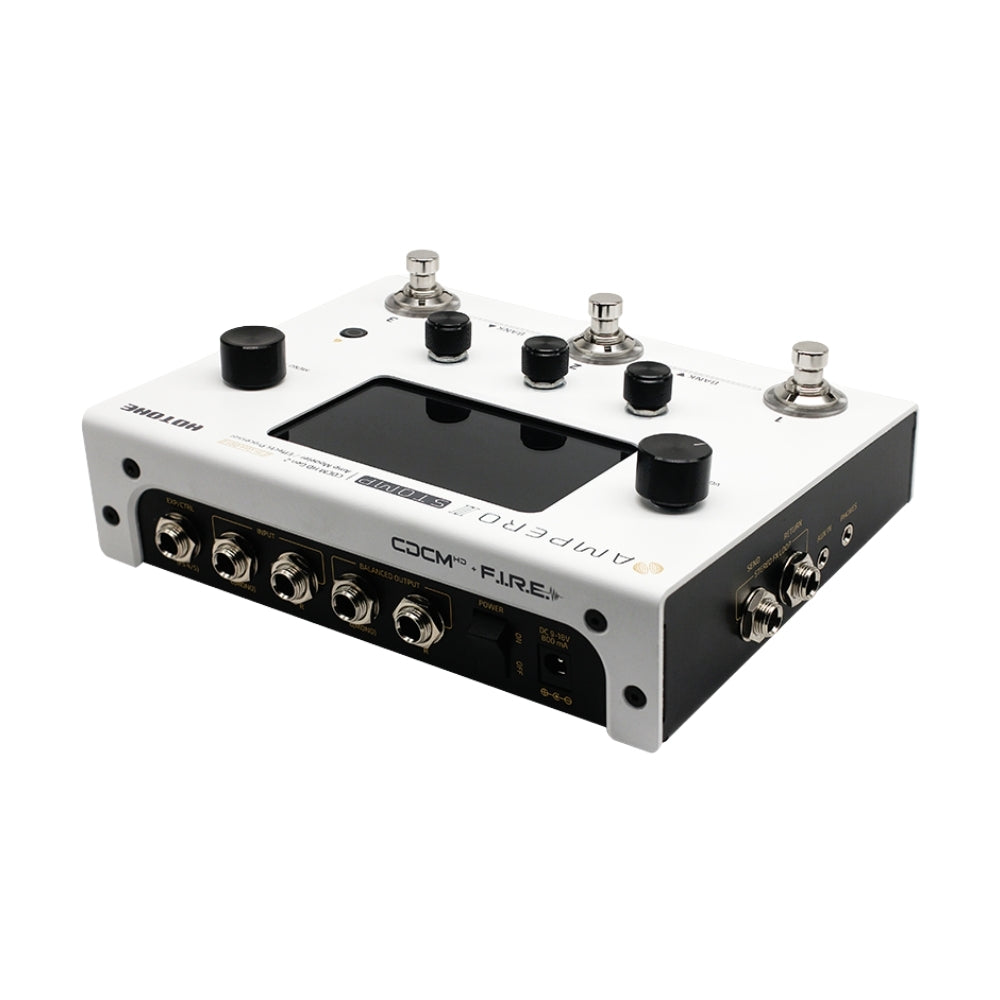

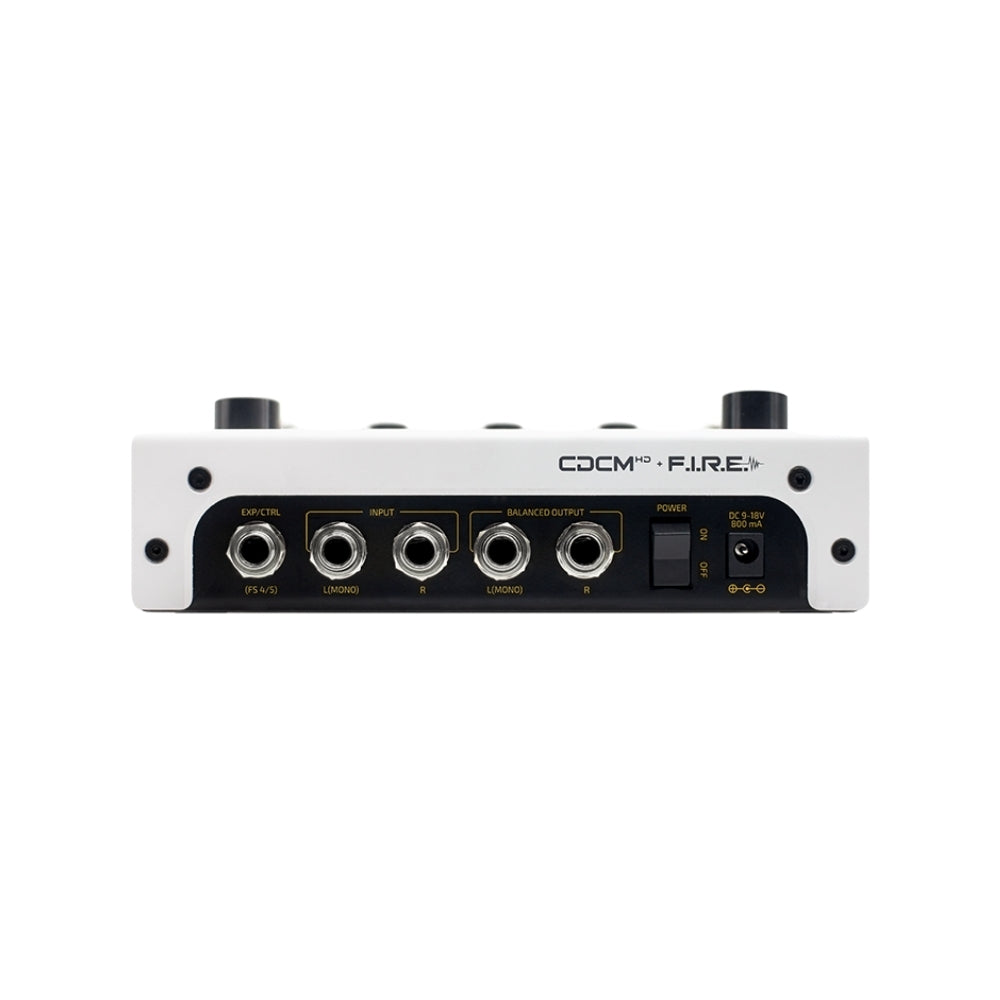

Entrances
Two 1/4" Tip Sleeve (TS) instrument jacks with individual input mode selector
One 1/8" stereo Auxiliary jack (Aux In)
A 1/4" Tip Ring Sleeve (TRS) expression pedal or momentary footswitch jack

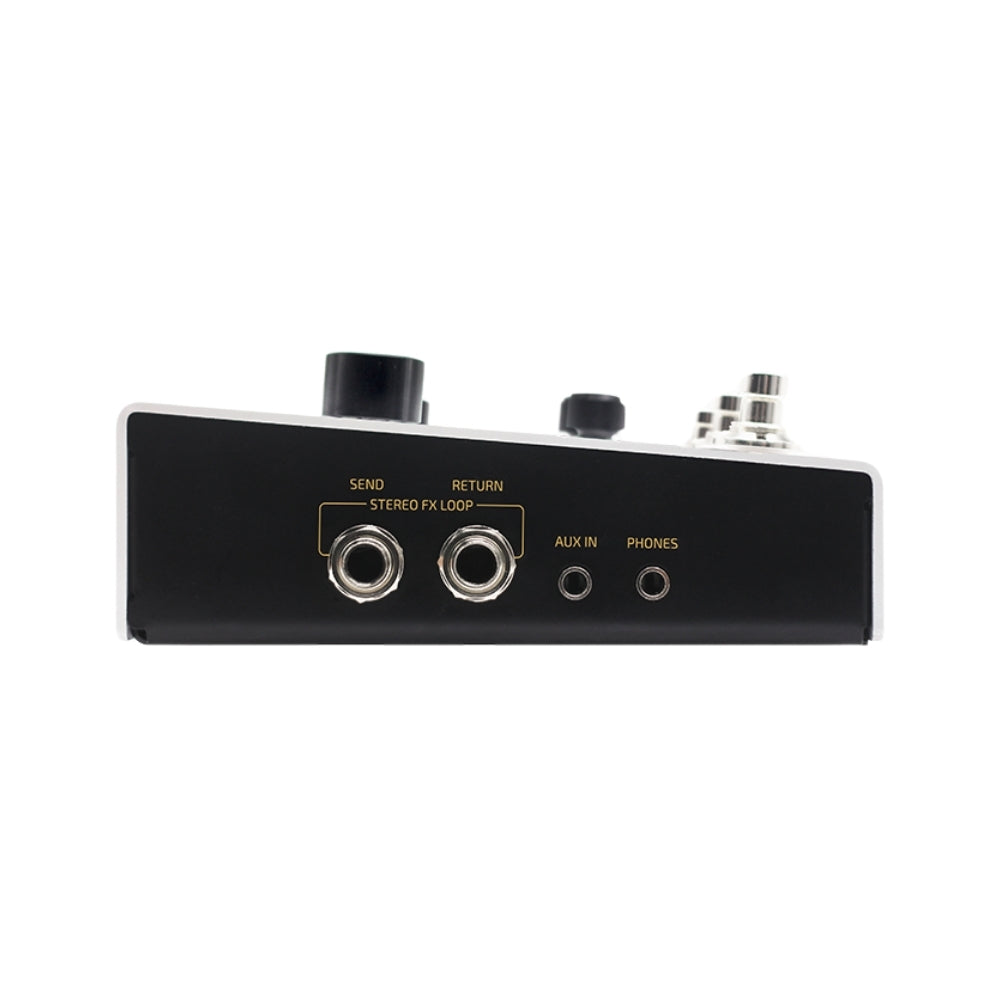

One unbalanced 1/4" Tip Ring Sleeve (TRS) stereo effects loop return jack

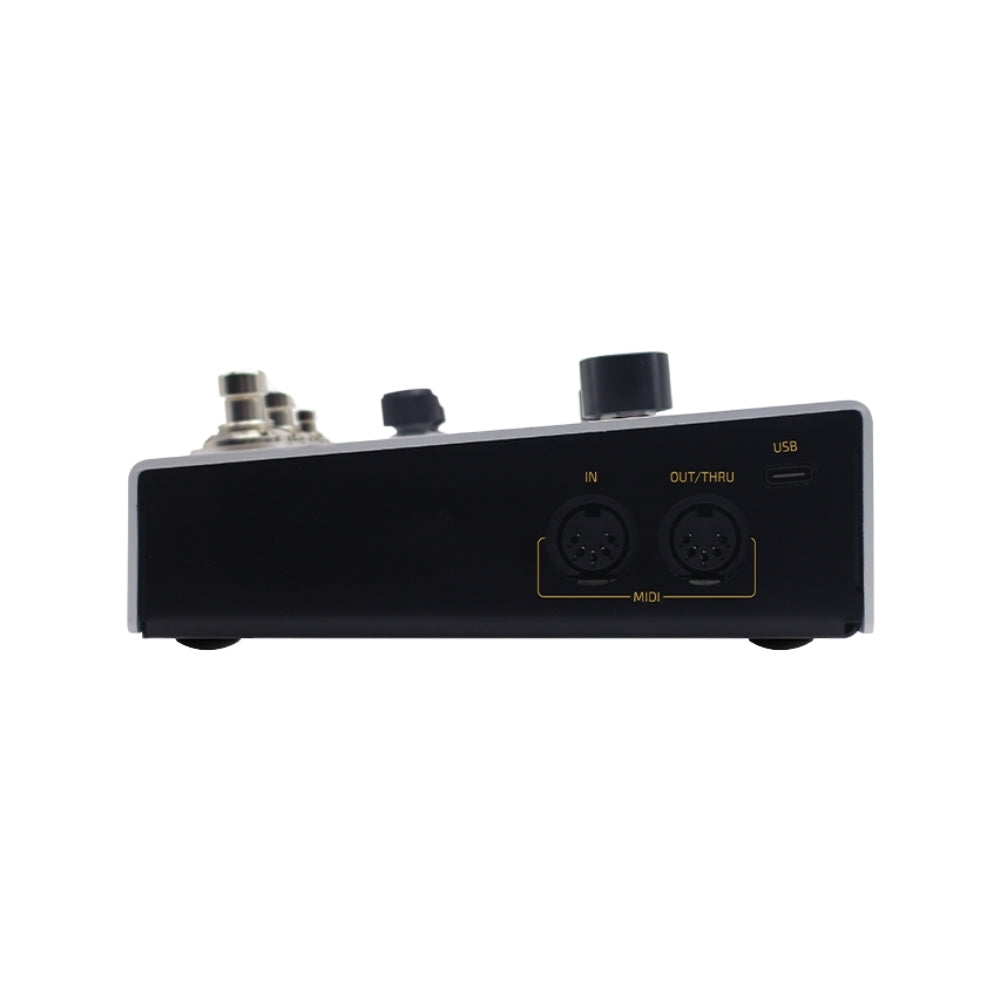

A standard 5-pin MIDI In socket
Exits
Two balanced 1/4" Tip Ring Sleeve (TRS) stereo outputs
One unbalanced 1/4" Tip Ring Sleeve (TRS) stereo effects loop send output
One 1/8" stereo headphone output
A standard 5-pin MIDI Out socket
Input Impedance
Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ
FX Loop Return: 100kΩ
Aux In: 10kΩ
Output Impedance
Output: 1kΩ
Send FX Loop: 1kΩ
Headphones: 47Ω
Entry Level
Input: -17.78 dBu (nominal); 14.5 dBu (max)
FX Loop Return: -17.78 dBu (nominal); 14.5 dBu (max)
Aux In: -17.78 dBu (nominal); 20 dBu (max)
Output Level
Output: -11.76 dBu (nominal); 26.25 dBu (max)
Send FX Loop: -17.78 dBu (nominal); 14.5 dBu (max)
Headphones: -7.4 dBu (nominal); 18.3 dBu (max)
Display : 4" dynamic color touchscreen (800 x 480 pixels)
USB port : USB Type-C USB 2.0 port, USB 2.0 audio compatible (8 inputs / 8 outputs)
Impulse Response (IR) : Supports 24-bit/44.1 kHz, 1024 and 2048 point mono WAV files; up to 50 user IRs
Power Supply : 9–18V DC center negative
Consumption : 800 mA max (at 9V DC)
Dimensions : 185mm (W) × 145mm (D) × 58mm (H)
Weight : 1050 g
