Features
- Second-generation amp modeler and multi-effects processor in stompbox format, ideal for stage and studio
- Ampero II tri-core DSP platform with ESS® Sabre® AD/DA converters for rich, musical and ultra-dynamic sound
- Advanced CDCM HD & FIRE modeling technology for exceptional tonal expressiveness and stunning playing realism
- 24-bit signal processing with a dynamic range of up to 127 dB*
- Large, dynamic 5" touchscreen with redesigned interface for smooth and intuitive navigation
- Fully customizable dual effects chain with flexible serial/parallel routing
- Freely add any effect module in the chain according to your needs
- Stereo inputs/outputs + stereo effects loop for maximum flexibility on stage or in the studio
- Microphone input with built-in preamp and phantom power for dynamic and condenser microphones
- Up to 12 simultaneous effects modules for complex sound creations
- Over 460 effects in the library updated with new Hotone algorithms
- CDCM HD & FIRE modeling including:
- 90+ modeled amps
- 68 speakers
- New microphone algorithm based on studio data
- New preamps
- Independent simulation of the power section
- More than 100 legendary pedals
- Over 60 original Hotone effects (overdrive, dynamics, filters, modulations, delays, reverbs, etc.)
- Dedicated IR loader compatible with third-party IRs, up to 50 user locations
- 20 Celestion® Impulse Responses Included – Powered by Celestion® Digital
- Supports up to 2048 IR points for optimal sound resolution
- USB port for firmware updates, effects management and IR via Win/Mac software
- 8-in/8-out USB audio interface with Reamp function and recording via AUX input
- Built-in acoustic effects and presets from the Ampero range
- Up to 300 presets (75 banks x 4 patches)
- Built-in stereo looper with 60 seconds of recording and undo/redo function
- 5 different input modes: electric guitar, acoustic guitar, mic, line, etc.
- Independent BAL/UNBAL/Phones outputs with dedicated processing and volume control
- 4 assignable footswitches with multi-color LEDs, two modes and customization
- Built-in expression pedal with two switchable statuses
- Scene function with 4 scenes per patch to switch effects and parameters without latency
- Integrated multi-color LED strip and customizable display (color themes)
- Authentic stereo audio processing
- Full MIDI connectivity + EXP/CTRL input for external controllers
- Lightweight, robust, stage-ready aluminum chassis
- 9–18V DC power supply (center negative)
*Data may vary depending on usage conditions.
Specifications
Audio Processing
- 24-bit / 44.1kHz digital processor
- Frequency response: 20Hz – 20kHz ± 1dB
- Max dynamic range: 127 dB (D/A)
Effects & Patches
- 460+ built-in effects (incl. global EQ)
- Up to 12 simultaneous effects
- 17 effects modules available
- 300 user patches (75 banks x 4)
- 60-second stereo looper with undo/redo function
Entrances
- 1 x 6.35 mm TS instrument jack with 3-mode selector (E.GT / A.GT / LINE)
- 1 x XLR / 6.35 mm TS jack combo with 5-mode selector and integrated microphone preamp (max. gain 52 dB)
- 1 x 3.5mm stereo mini-jack (Aux In)
- 2 x 6.35 mm TRS jack for expression pedal or footswitch (EXP/CTRL)
- 1 x 6.35 mm TRS jack FX Loop Return

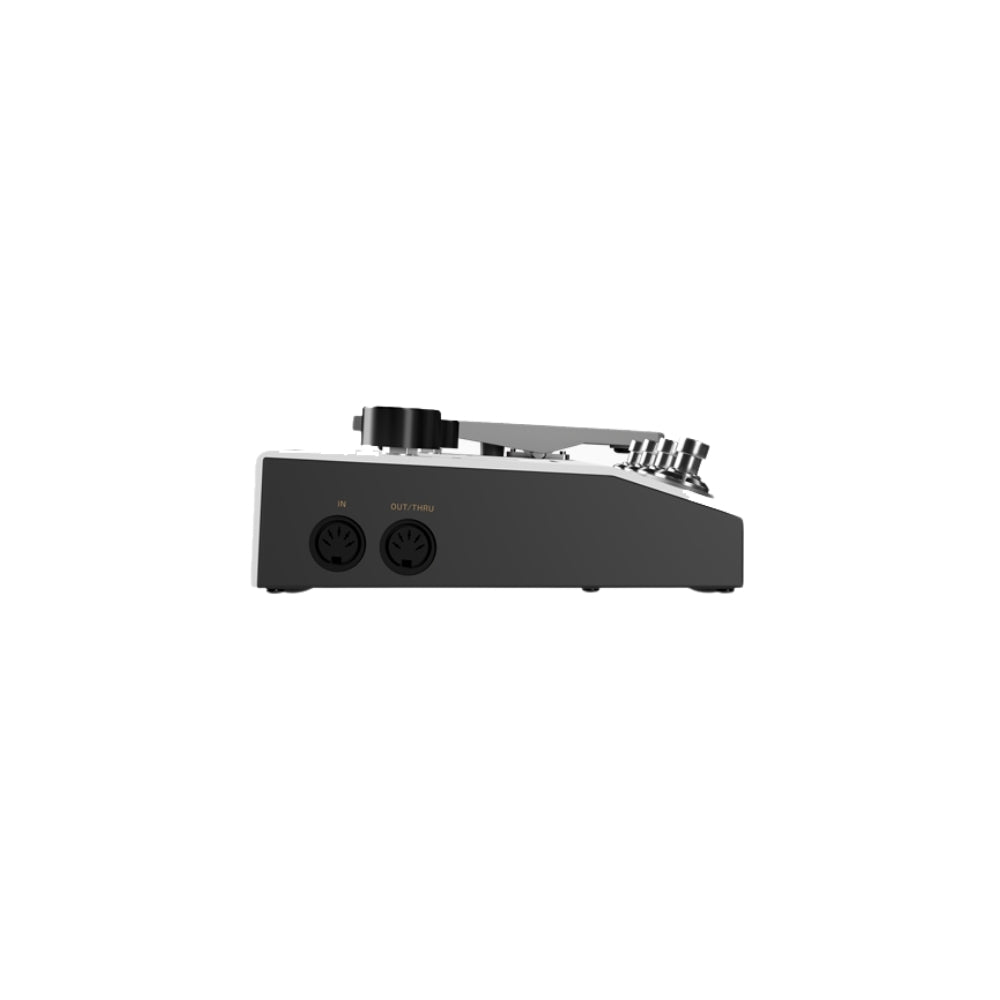

- 1 x MIDI Input (5-pin DIN)
Exits
- 2 x 6.35 mm TRS stereo unbalanced jacks
- 2 x balanced stereo XLR with ground lift switch
- 1 x 6.35 mm TRS jack FX Loop Send
- 1 x 3.5 mm stereo mini-jack (headphone output)
- 1 x MIDI output (5-pin DIN)
Input impedances
- TS instrument: E.GT 1 MΩ / A.GT 4.7 MΩ / LINE 10 kΩ
- XLR input: 5 kΩ
- FX Loop Return: 100 kΩ
- Aux In: 10 kΩ
Output impedances
- TRS / XLR outputs: 1 kΩ
- FX Loop Send: 1 kΩ
- Headphone output: 47 Ω
Screen & Connectivity
- 5" dynamic color touchscreen (800 × 480 px)
- USB-C port (USB Audio 2.0 compatible)
- USB audio support from 44.1 to 192 kHz
Impulse Responses (IR)
- 24-bit / 44.1kHz mono WAV files
- Supports 1024 and 2048 points
- Up to 50 IR users
Power & Dimensions
- Power Supply: 9–18V DC (center negative)
- Consumption: max. 1.2 A @ 9V DC
- Dimensions: 330 × 157 × 61 mm
- Weight: 1.695 kg
Downloads
Download the user manual
Download the Firmware
Download Software (Mac / Win)
